Samplig oscilloscope
Samplig oscilloscope
| MANUFACTURER | Tektronix |
|---|---|

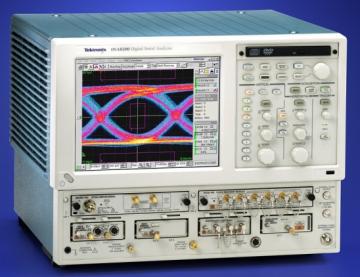

| MODEL | DSA 8200 |
General description:
Electrical signals characterization
Characteristics :
DSA8200JNB01
- 80E09 Sampling Module Dual Channel 60 GHz (5.8 ps step response)
- 80E03 Sampling Module Dual Channel 20 GHz (17.5 ps step response) (2X)
- 80E10 TDR Module Dual Channel 50 GHz (12ps Incident)
- 80A02 EOS/ESD Protection Module
- 80A06 PatternSync Module
- 82A04 Phase Reference Module (jitter of <200 fs RMS)
- CR125A 12.5Gb/s Clock Recovery Instrument
- P80318 Differential Handheld TDR Probe 18 GHz (3X)
- P8018 Single-ended Handheld TDR Probe 20 GHz (2X)
- GigaProbes DVT30-1MM 30 GHz Hand Held TDR Probes (2X)
Software
- 80SICON IConnect Signal Integrity TDR and S-parameter Software
- 80SJNB Jitter and Noise Analysis Measurements
- CR125A PCIE PCIe PLL analysis
- CR125A12GJ Jitter Spectrum Analysis up to 11.2 Gb/s
- CR125A XLBW Extended Loop Bandwidth in the clock recovery
To use this equipment
The equipment available is accessible to the academic and industrial research community.
To learn about usage conditions and availability, please fill out the form below. After reviewing your request, we will contact you shortly to offer you the best available solution.
