Impedance measures

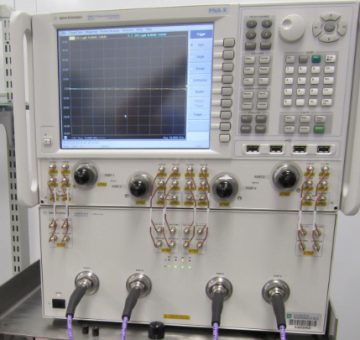

MANUFACTURER	Agilent
MODEL	8364C / N5247A

General description:

Measures electrical networks parameters. Network analyzers commonly measure s–parameters. PNA-X series used at MicroQ are the most advanced and flexible network analyzer, providing complete linear and nonlinear component characterization from 2

Characteristics :

Widest range of microwave applications
Include active device characterization and tests
Device modeling
High-speed digital passive circuit
Material research.
Delivers +10 dBm output power 8 Ports VNA : Model N5247A (67GHz)
110 dB system dynamic range
0.1 dB receiver compression point of +11 dBm specified at 67 GHz.

Use this equipment

Categories: Analytical laboratory, Failure Analysis

To use this equipment

The equipment available is accessible to the academic and industrial research community.

To learn about usage conditions and availability, please fill out the form below. After reviewing your request, we will contact you shortly to offer you the best available solution.
