Mixed signal oscilloscope
Mixed signal oscilloscope

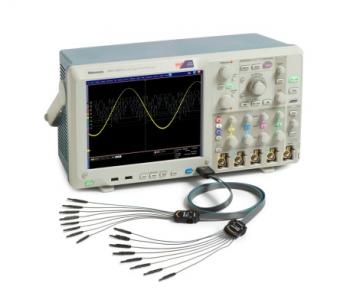

| MANUFACTURER | Tektronix |
|---|---|
| MODEL | MSO 5204 |
General description:
Electrical signals characterization
Characteristics :
- Analog bandwidth: 2 GHz (4 ch)
- Sample rate: 10 Gsa/s (2 ch), 5 Gsa/s (4 ch)
- Record Length: 250M (2ch), 125M (4ch)
- Channels: 4 Analog, 16 Digital
- TAP2500 2.5 GHz TekVPI active single-ended voltage probe (2X)
- TDP3500 3.5 GHz TekVPI differential voltage probe with ±25 Vdiff input voltage (3X)
- P6616 16-channel logic probe and accessory kit
- PS1 Power Solution Bundle: DPOPWR, P5205, TCP0030, TPA-BNC
- Software
- SR-EMBD Embedded Serial Triggering and Analysis (I2C, SPI) SR-USB USB Serial Triggering and Analysis (LS, FS, HS)
- FPGAVIEW-X-MSO Support for Xilinx FPGA programming
To use this equipment
The equipment available is accessible to the academic and industrial research community.
To learn about usage conditions and availability, please fill out the form below. After reviewing your request, we will contact you shortly to offer you the best available solution.
