Real time oscilloscope
Real time oscilloscope
| MANUFACTURER | Agilent |
|---|---|
| MODEL | DSA-X-91604A |
General description:
Electrical signals characterization
Characteristics :

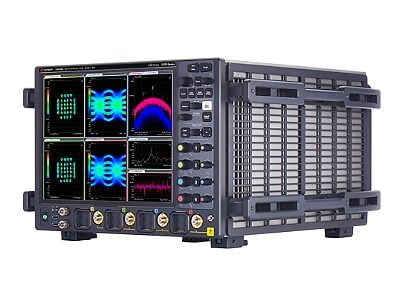

- UXR0404AP Infinium UXR Real-Time Oscilloscope
- 4 channels, 40 GHz, 256 GSa/s, 10-bit ADC
- 5 GHz Configurable mmWave Extension Bandwidth Window up to 110GHz
- The industry’s highest ENOB at bandwidths up to 110 GHz
- Industry’s lowest noise floor with less than 1 mVrms of noise
- Industry’s lowest jitter with less than 25 fs (rms) of intrinsic jitter and less than 10 fs (rms) of inter-channel jitter
- Probing solutions up to 30GHz
- Adaptor 1 mm ruggedized to 1.85 mm DC to 67 GHz
- Adaptor 1 mm ruggedized to 2.92 mm DC to 40 GHz
- Bandwidth (up to 110 GHz) and memory upgradable
Software:
- Pulse Amplitude Modulation PAM-N Analysis software
- Basic Vector Signal Analysis software 89601B
- EZJIT Plus jitter analysis software
- High-Speed SDA and clock recovery
- InfiniiScan software triggering
- InfiniiSim advanced signal de-embedding
- Infiniium Serial data equalization
- MATLAB – Data Analysis Software for Infinium and InfiniVision Oscillscopes
- Protocol Decode for PCI-Express, I2C/SPI, USB 2.0 and JTAG
Compliance testing and validation software
- DDR2 validation application
- DDR3 up to 1660 MHz validation application
- FB-DIMM Oscilloscope Application
- PCI Express compliance PCIe 1.0 thru 3.0
- USB 3.0 Compliance Software
- Xaui compliance application
To use this equipment
The equipment available is accessible to the academic and industrial research community.
To learn about usage conditions and availability, please fill out the form below. After reviewing your request, we will contact you shortly to offer you the best available solution.
