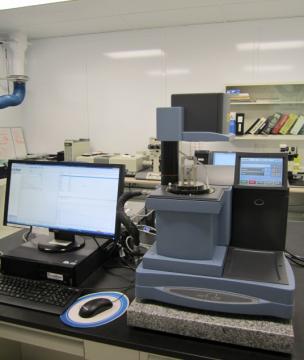

TA Instruments Q800
TA Instruments Q800
| MANUFACTURER | TA Instruments |
|---|---|
| MODEL | Q800 |
General description:
Provide mechanical and viscoelastic properties measurements on materials submitted to cyclical stress in control atmosphere. Modes of deformation: dual/single cantilever, tension, 3-point bend and compression
Characteristics :
- Measurement on material from 1000 Pa to 1000 GPa
- Temperature range: RT to 600°C
- Frequency range: 0.01 to 200 Hz
- Force: 0.0001 to 18 N
- Amplitude: 0.5 to 10 000 µm
- Resolution to 1 nm
- 25 mm drive shaft travel
- Ultra-sensitive force ideal for films, fibers and material with low stiffness
- Automated furnace movement
- Easy clamping accessibility
- Low frictions 3-point bending clamp kit (20 mm and 50 mm)
- Parallel plate compression clamp kit
- Film/fiber tension clamp kit
- Time temperature superposition software
- Real time data analysis, auto analysis, ability to create up to 20 simultaneous curve overlay plots
To use this equipment
The equipment available is accessible to the academic and industrial research community.
To learn about usage conditions and availability, please fill out the form below. After reviewing your request, we will contact you shortly to offer you the best available solution.
