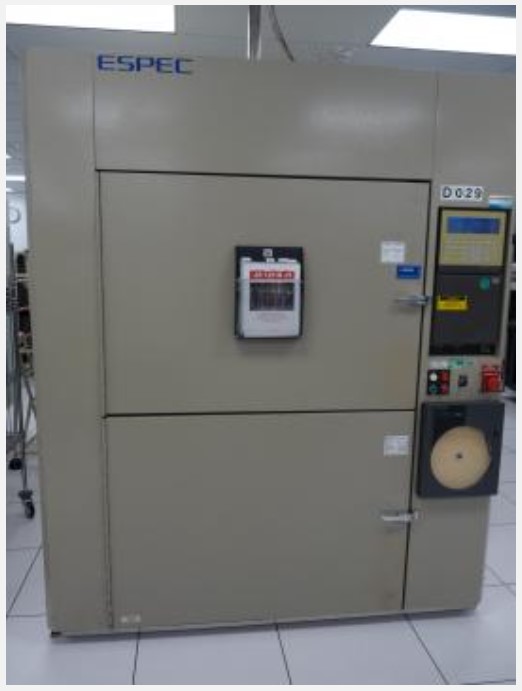

Thermal Shock Chambers ETS13-SSW
Thermal Shock Chambers ETS13-SSW
| MANUFACTURER | Espec, Thermotron, Envirotronics, Tenney |
|---|---|
| MODEL | ETS13-5SW |
General description:
Determine the ability of components and solder interconnects to withstand mechanical stresses induced by alternating high and low temperature extremes.
Characteristics :
- Meets Jedec temperature cycling specifications JESD22-A104
- Temperature recordings with data logging
- Temperature range from -77°C to 180°C in two different chambers (hot and cold)
- Elevator transferring parts in both hot and cold zones after a given time
- Maximum chamber dimensions 28x24x33 inches ( W,D,H)
- Typical rise time -55 to 125C, 5 min , 2 cycles/ hour ( thermal mass dependant)
- Available tests : DTC, TS, others on demand
To use this equipment
The equipment available is accessible to the academic and industrial research community.
To learn about usage conditions and availability, please fill out the form below. After reviewing your request, we will contact you shortly to offer you the best available solution.
