Fluorometer

General description:

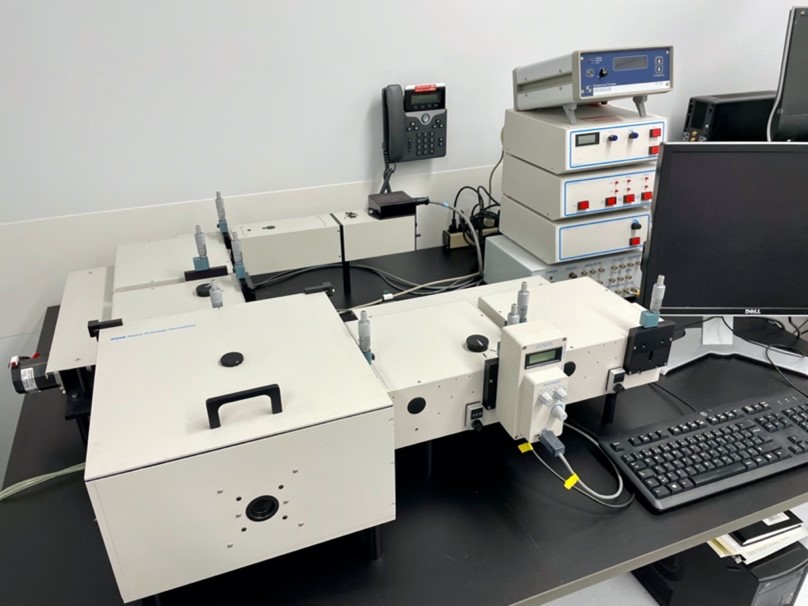

The QuantaMaster fluorimeter is currently the most sensitive benchtop spectrometer for fluorescence detection (in steady-state mode) available on the market. The QuantaMaster is equipped with a dual excitation and emission monochromator system (for a total of 4 monochromators), enabling the effective elimination of stray light for more accurate measurements. Its exceptional signal-to-noise ratio and high detection limit allow for the measurement of light emission from minute concentrations of fluorescent compounds in solution.

Applications:

The QuantaMaster fluorimeter is currently the most sensitive benchtop spectrometer for fluorescence detection (in steady-state mode) available on the market. The QuantaMaster is equipped with a dual excitation and emission monochromator system (for a total of 4 monochromators), enabling the effective elimination of stray light for more accurate measurements. Its exceptional signal-to-noise ratio and high detection limit allow for the measurement of light emission from minute concentrations of fluorescent compounds in solution.

Characteristics :

Example of detection limit: Can measure the emission signal from a solution with a concentration as low as 460 attomolar (10⁻¹⁸ M) of fluorescein (0.1 M NaOH).

• Measurement of excitation and emission spectra
• Cuvette holder with Peltier temperature control module (K-155-C)
• Temperature range: -40 °C to 105 °C
• Signal-to-noise ratio: >30,000:1 RMS
• Detection range (PTI-814 PMT): 185 nm to 900 nm
• Excitation source: 75 W xenon arc lamp
• Equipped with a double monochromator (Czerny-Turner, 300 mm) on the excitation side to eliminate stray light
• Equipped with a double monochromator (Czerny-Turner, 300 mm) on the emission side to eliminate stray light scattered by certain types of samples (cell suspensions, micelles, nanoparticles, etc.)
• Computer-controlled slit width
• Wavelength accuracy: +/- 0.3 nm
• Accessory for titration
